SJ 06 - Drawing in Scale

This is my drawing after enlarging the scale of 1:100 to 1:75. Then, by using different thickness of felt pen, ranging from 0.1 to 0.4, I drew this floor plan and elevation.

SJ 05 - Site Analysis in Taman Tasik Shah Alam

My group's architect is Plilip Johnson.

We visited Taman Tasik Shah Alam on the 12th October 2010 as part of our site analysis project and also to generate ideas for my toy character's viewing tower. The toy character that I had chosen is Pashmina from the cartoon series, Hamtaro.
We had only 1 hour to choose our site. After walking almost half of the lake, we found this 1st site.

However,after considering that the place is quite dull and has less human passing-by, we decided to choose this 2nd site. Nonetheless, I felt that this site is quite secluded and dark.

Thus, we pick this calm site which looks very similar to a beach which is our 3rd choice site.

However, at last we decided to go back to the 2nd site and we saw this site which is adjacent to the 2nd site. Thus, concluding it as our site.

With very little time left, we did finish our site analysis and came out with pictures and observations. These are some of the Panaromic Views of the site from different places.
1. From the corners of the site.

2. From the front of the site.

3. From the back of the site.

These are the views looking into the site.

This site has many natural and man-made structures as well.

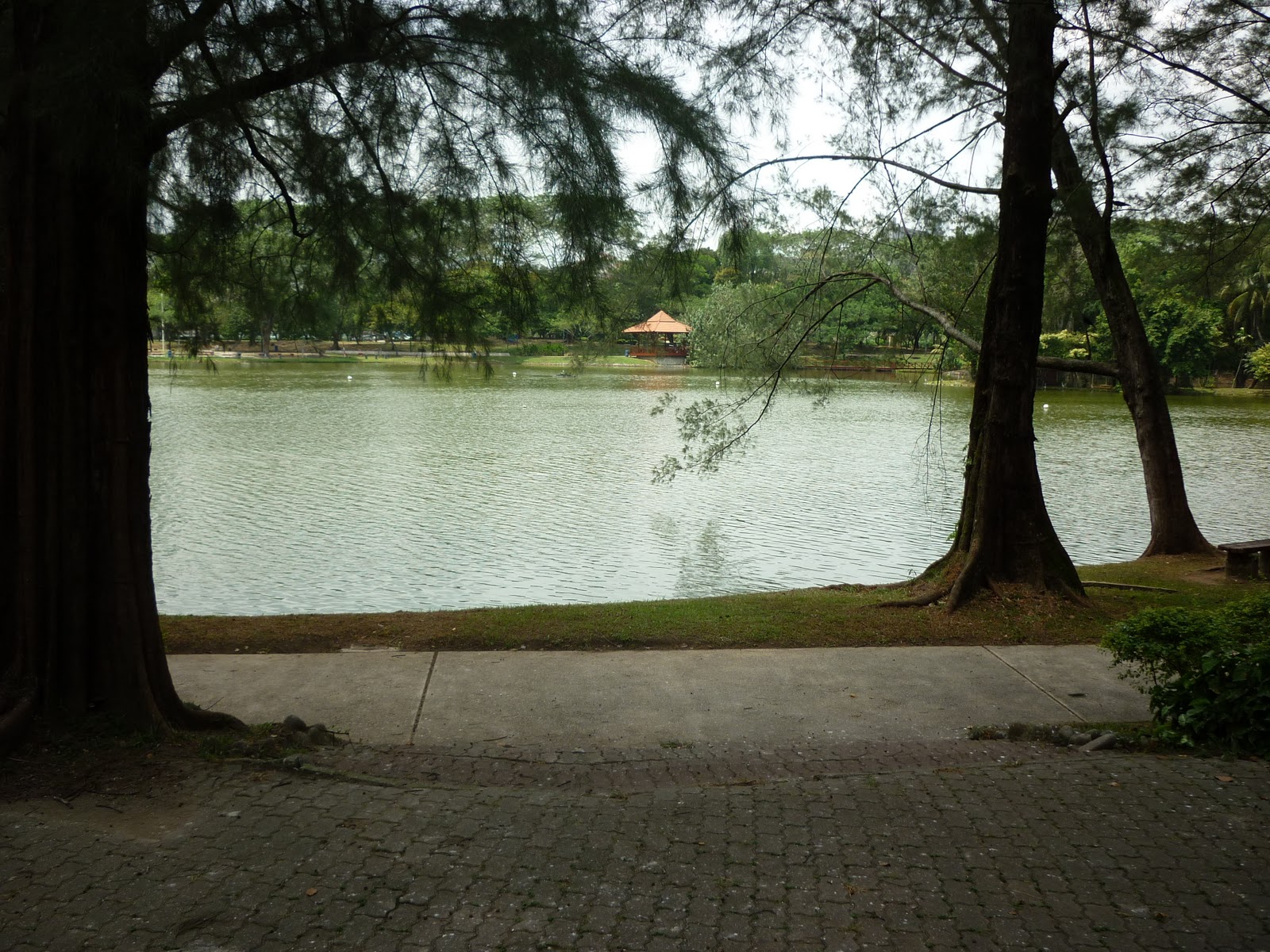

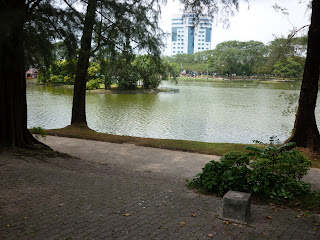

These are the views looking outside from the site.

 Jogging Trail

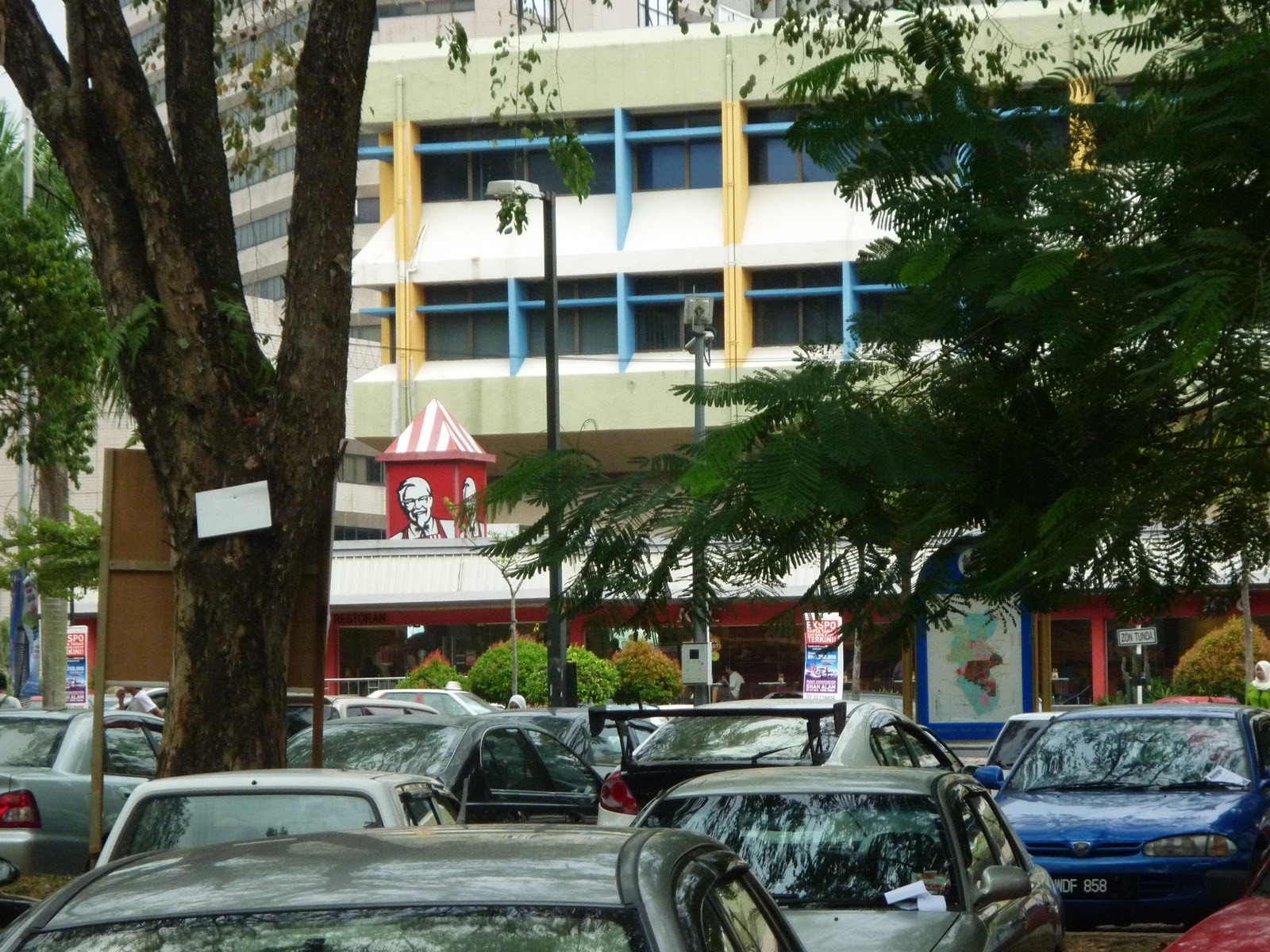

 KFC (in PKNS complex)

 Carpark

 PKNS Complex

 Restaurant

 Wildlife Island 1

 SIRIM Building

Wildlife Island 2
